Introduction:

JFSS series composite vibrating screen is a new type of energy-saving composite screening equipment independently developed by our company, which was granted the national patent in 2009. The screen machine is mainly used in blast furnace trough, sintering plant, raw material plant, coal, mining plant, ect.

Construction:

1. sieve plate

2. feed port

3. material export on the screen

4. material export under the screen

5. screen box

6. sealing cover

7. dust removal port

8. damping device

9. vibration source.

Features & advantages:

1. Be arranged back-to-back in the sieve box, with adult font arrangement and compact structure,which can effectively reduce the floor space and make reasonable use of space

2. Adopt rod and bar structure and be designed with self-cleaning device. High opening rate of sieve hole, not easy to block, high screening efficiency;

3. A sealing cover above the sieve box to make the screening work in a fully sealed state, which can effectively prevent dust generated by the screening from flying everywhere;

4. Equipped with dust removal port, which can absorb the dust generated in the work of the vibrating screen, greatly reduce the dust caused by screening materials, and improve the dust removal effect.

5. The sluice gate is designed at the feed inlet, which can effectively control the material flow, adjust the material flow amount on both sides of the screen plate, and make the material distribution balance.

6. The screen box can be supported on a fixed base, or on a walking bottom frame with walking wheel and rail clamp.

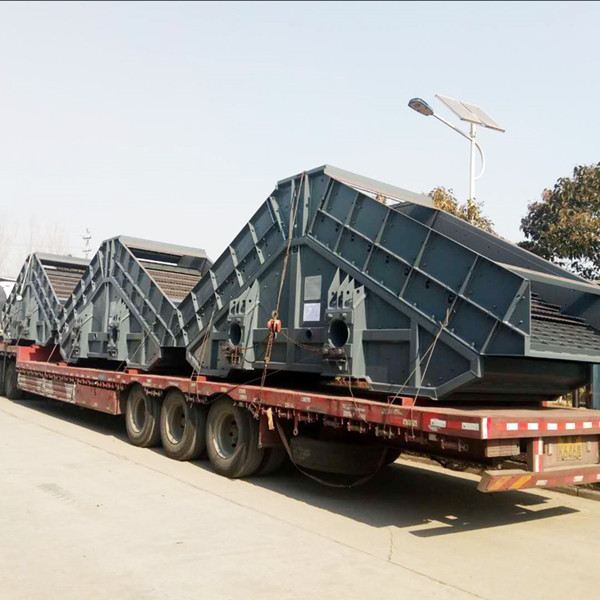

Wanna see the delivery site, please click: https://www.hnjinte.com/news/russian-environmentally-friendly-vibrating-screens-have-been-shipped

279033429783640511



Technical Parameters:

JFSS Series Sintered Environmental Protection Screen

Sintering Machine (㎡)

Matched Vibrating Screen (Model)

Processing Capacity (t/h)

Quantity (Set)

Blanking Granularity (mm )

Remarks













90

JFSS105*600 Sintering Primary Sieve

400

2

10

Open One, Get One Ready

JFSS105*600
Sintering Secondary Sieve

220

2

5

Open One, Get One Ready

JFSS105*600 Sintering Tertiary Sieve

220

2

20

Open One, Get One Ready

180

2JFSS125*700-II Sintering Primary And Secondary Sieves

500

2

20、10

Open One, Get One Ready

JFSS125*600-I丨Sintering Tertiary Sieve

300

2

5

Open One, Get One Ready

2*180

2JFSS125*600-IV Sintering Primary And Secondary Sieves

650

3

20、10

Open One, Get One Ready

2JFSS125*600-IV Sintering Secondary Sieve

400

3

5

Open One, Get One Ready

265

2JFSS150*700-II Sintering Primary And Secondary Sieves

700

2

20、10

Open One, Get One Ready

JFSS150X600-I丨Sintering Secondary Sieve

350

2

5

Open One, Get One Ready

2*265

2JFSS150*700-IV Sintering Primary And Secondary Sieves

750

3

20、10

Open One, Get One Ready

2JFSS150*600-IV Sintering Secondary Sieve

350

3

5

Open One, Get One Ready

360

2JFSS150*700-MSintering Primary And Secondary Sieves

890

2

20、10

Open One, Get One Ready

2JFSS150*600-I丨Sintering Secondary Sieve

500

2

5

Open One, Get One Ready

2*360

2JFSS150*700-IV Sintering Primary And Secondary Sieves

950

2

20、10

Open One, Get One Ready

2JFSS150*600-IV Sintering Secondary Sieve

700

2

5

Open One, Get One Ready

450

2JFSS185*700-II Sintering Primary And Secondary Sieves

1050

2

20、10

Open One, Get One Ready

2JFSS185*600-M Sintering Secondary Sieve

700

2

5

Open One, Get One Ready

2*450

2JFSS185*700-IV Sintering Primary And Secondary Ssieves

1050

4

20、10

Open Three And Prepare One

2 J FSS185*600- IV Sintering Secondary Sieve

700

4

5

Open Two And Prepare One

500

2JFSS200*700-II Sintering Primary And Secondary Sieves

1150

2

20、10

Open One, Get One Ready

2JFSS200*600-I丨Sintering Secondary Sieve

800

2

5

Open One, Get One Ready

2*500

2JFSS200*700-IVSintering Primary And Secondary Sieves

1050

4

20、10

Open Three And Prepare One

2JFSS200*600-IV Sintering Secondary Sieve

700

4

5

Open three and prepare One
