Professional Design Powder Tumbler Circular Vibrating Screen Separator Machine

Company purpose:

We hold strengthening and perfecting our items and repair. At the same time, we get the job done actively to do research and progress for Professional Design Powder Tumbler Circular Vibrating Screen Separator Machine, Your help is our everlasting electricity! Warmly welcome customers at your home and abroad to go to our enterprise.
Providing the best products and solutions, the most perfect service with the most reasonable prices are our principles. We also welcome orders.Dedicated to strict quality control and thoughtful customer service, we are always available to discuss your requirements and ensure full customer satisfaction. We sincerely welcome friends to come negotiate business and start cooperation.

Product introduction:

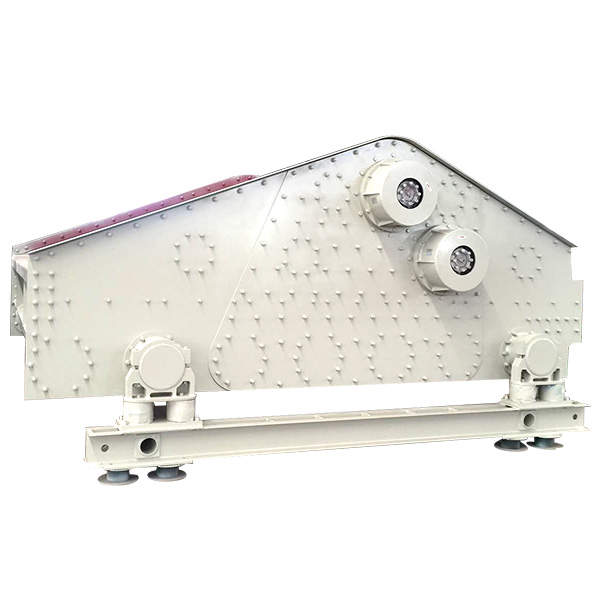

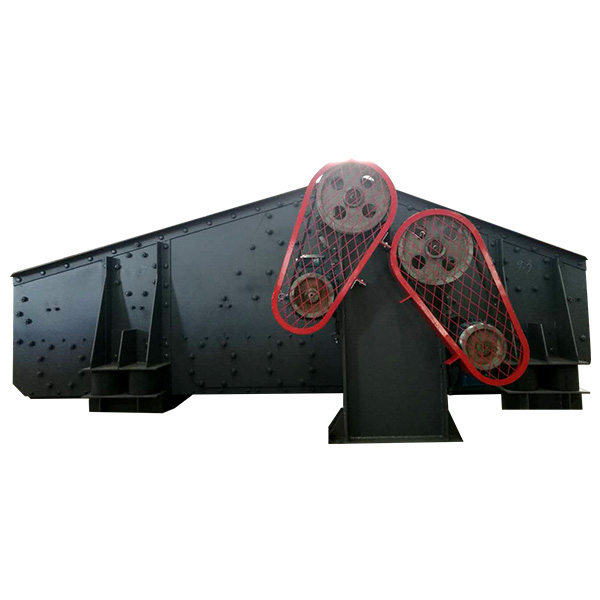

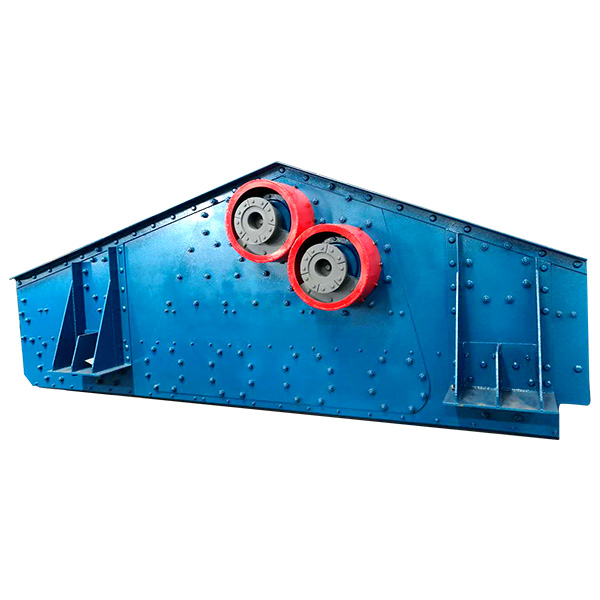

ZSK linear vibration screen is linear movement, the whole series of 24 specifications. Coal processing, mineral processing, power generation, sugar, salt and other industrial sectors can used. ZSK linear vibrating screen is used for dry and wet screening, de-watering, dis-intermediation and de-silting of medium and fine materials.

Features & Advantages:

1. Small size, light weight, simple structure, convenient installation and easy maintenance;

2. Low noise, low energy consumption, high efficiency and low cost;

3. High screening accuracy, no dust pollution, conducive to environmental protection;

4. Can be replaced with a variety of screens, long service life;

5. Adopt block eccentric self-synchronous vibration exciter;

6. Vibrating screen can be used in other occasions with inclination.

Applications:

√ fine particle dewatering and grading

√ coal slime or tailings recovery.

Working principle and structural features:

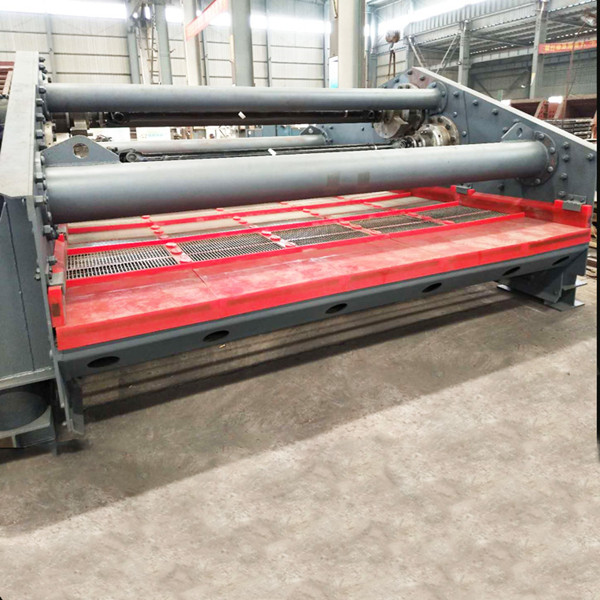

The screen with flange type vibration exciter, from the two motor extension to reverse self-synchronous rotation, make the screen body along the straight line to do periodic reciprocating motion, so as to achieve the purpose of classification dehydration. The screen frame is connected by high-strength bolts, and the screen surface is composed of arc section and straight section. The structure is firm and durable.

 Use and Maintenance:

A. starting sequence of dewatering screen: start in the direction of reverse material flow and stop in the direction of forward material flow. Avoid starting with materials, and stop after all materials are screened on the screen.

B. During the working process of the sieve, attention shall be paid to whether the operation of the sieve box is smooth or not.

C. The dewatering screen is generally installed with negative inclination Angle.

D. dust and impurities are easy to accumulate between springs, which will affect the normal operation of springs, and should be cleaned frequently.

E. often check the screen machine bolt connection, if there is a loose timely tightening.

F. The shaker bearing is lubricated with no. 3 lithium grease. Under normal conditions, lubricating oil should be added once a month and the bearing should be cleaned and inspected once a year.

No

Name

Unit

ZSK-1231

ZSK-1431

ZSK-1837

ZSK-2448

ZSK-3645

1

Feed concentration

%

≥45

≥45

≥45

≥45



2

Processing capacity

t/h

15-19

15-19

28-33

60-120

>150

3

Screen size

mm

1200*3100

1400*3100

1800*3700

2400*4800

3600*4500

4

Screen size

mm

0.3,0.35

0.3,0.35

0.3,0.35

0.3,0.35

0.35

5

Double amplitude

mm

3-5

3-5

3-5

3-5

6-8

6

Vibration frequency

Hz

25

25

25

25

16

motor

model

Kw

Y122M-4

Y132S-4

Y132M-4

Y180M-4

YE2-200L2-6

power

Voltage

8

V

380

380

380

380

380

9

Single point maximum dynamic load

N

±200

±2500

±3500

±5000

52500
